Yates 361 Special Ops Full Body Harness

Full Body Harness

Yates 361 Special Ops Full Body Harness

361 Special Ops Full Body Harness Harness

Designed for use as a Type I full body harness per the requirements set forth in ANSI/ASSE Z359.11-2014. Classified by UL to meet the harness requirements of NFPA 1983 Standard on Fire Service Life Safety Rope and Equipment for Emergency Services 2017 edition; Class III full body harness.

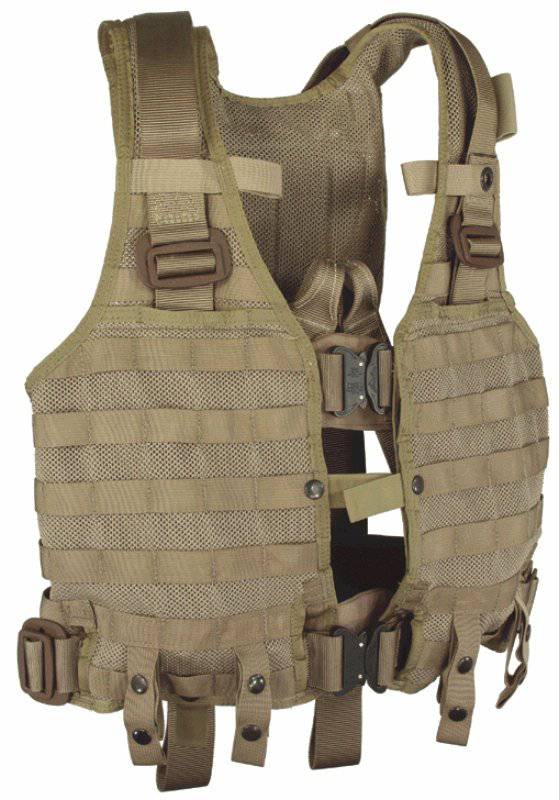

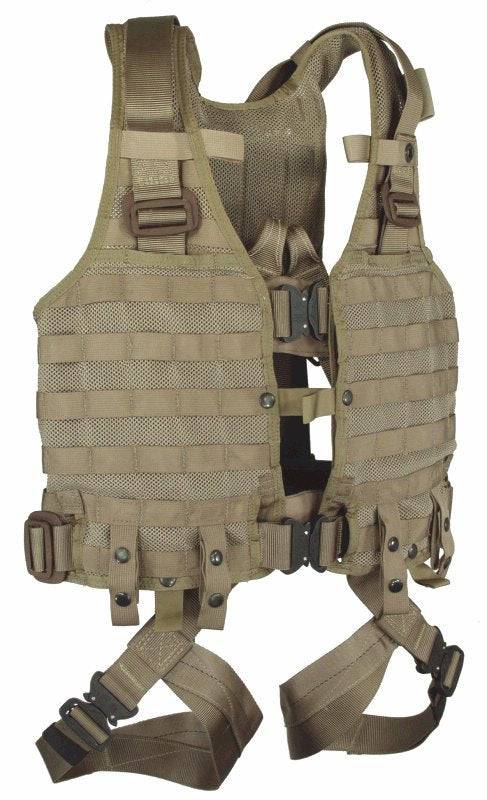

A full body harness and tactical load bearing vest are combined offering a unique product for civilian Special Operations and SWAT personnel. This modular harness and tactical vest combination was originally developed by Survival Inc. as the Joint Services Aircrew Vest and Extraction System™ (JSAVES) for US Air Force helicopter pilots and crew.

NEW RE-DESIGN FOR 2014. The 361 was completely redesigned in late 2014. The original design was not designed by Yates Gear, it was sewn under contract for the Navy as a Helo pilot extraction harness. We always disliked there specific configuration. The redesign follows how we build other full body and seat Yates harnesses. The new design more comfortable, more adjustable and much stronger than the original military contracted JSAVES design. The new design also allowed for the integration of to rappel loops at waist level. This was necessary for Heli rappel operations out of the black hawk helicopters that do not have skids for the operator to stand on. The loops below the waist belt are to attach a gear bag during rappelling, hoisting or short haul operations. A full body harness and tactical load bearing vest are combined offering a unique product for civilian Special Operations and SWAT personnel.

This modular harness and tactical vest combination was originally developed by Survival Inc. as the Joint Services Aircrew Vest and Extraction System™ (JSAVES) for US Air Force helicopter pilots and crew. Some additional features and add on modules were added for civilian Special Ops needs. Comes with front attachment points which when connected with a locking carabiner can be used for extraction or rappel applications. (Used with Extraction/Personal Retention Lanyard item # 566). A rear dorsal D ring is provided for helicopter spotter or gunner lanyard attachment. Dorsal D ring is used for SPIE Lanyard attachment (Item # 364). Easily donned by use of quick connect double release action Mil-Spec. COBRA buckles on waist, sternum and leg loops. Leg loops are stowed in concealed pockets on the bottom of the vest until needed. 4 inch padded waist belt. Tactical load bearing vest is designed using the latest military Modular Lightweight Load Carrying Equipment (MOLLE) system to easily attach desired pockets, ammo pouches and weapons. The vest does not come with any pockets or pouches. Molded rubber drag handle included on rear of vest. Weight 5 lb. 12 oz. with vest.

Full Body Harness Features:

• One size, fully adjustable
• D ring at rear of padded waist pad is for positioning only
• Additional attachments include flotation vest and rescue swimmer attachment
• Now available in Small Version for women and the asain market (90-145 lbs) Part#: 361-S
• 361 Special Ops Full Body Harness will be tested by UL classified to NFPA 1983/2017 edition standards, expected certification first quarter of 2017.
• SPIE Lanyard not included
• Extraction/Personal Retention Lanyard not included

Full Body Harness Usage and Applications:

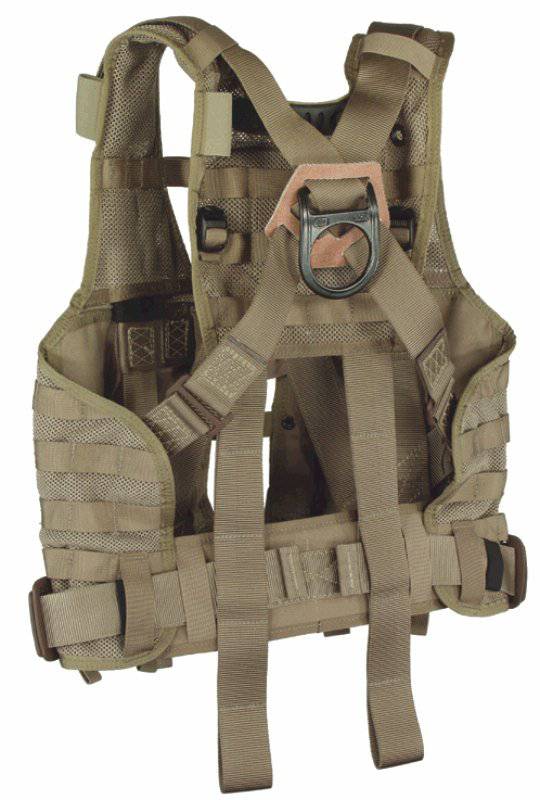

D ring located in the rear between the shoulders (dorsal) as well as sternal D ring should be used for all Class III full body applications for general fall arrest protection. Attach only ANSI compliant lanyards to dorsal or sternal D ring. Maximum free fall distance is dictated by type of fall protection lanyard or system utilized. This could be 6 or 12 feet if utilizing energy absorbing lanyards designed for 6 or 12 foot free fall. Ensure complete inspection and verification of fall protection system to meet needed protection. Attachment of ANSI compliant shock absorbing/decelerating device is required at dorsal or sternal attachment point only for all fall arrest applications.
Two D rings (option) located on top of the shoulders should be used for lowering
situations such as in confined space rescue when a long hang time is anticipated. The use of a Y lifting bridle is recommended for use with upper shoulder D ring attachments for lowering in confined space applications.

Maximum capacity of harness is 310 lbs. per ANSI/ASSE Z359.11-2014
