STEC 1 Armor Resistance Glass Film - S1A# 336 R1 (Clear)

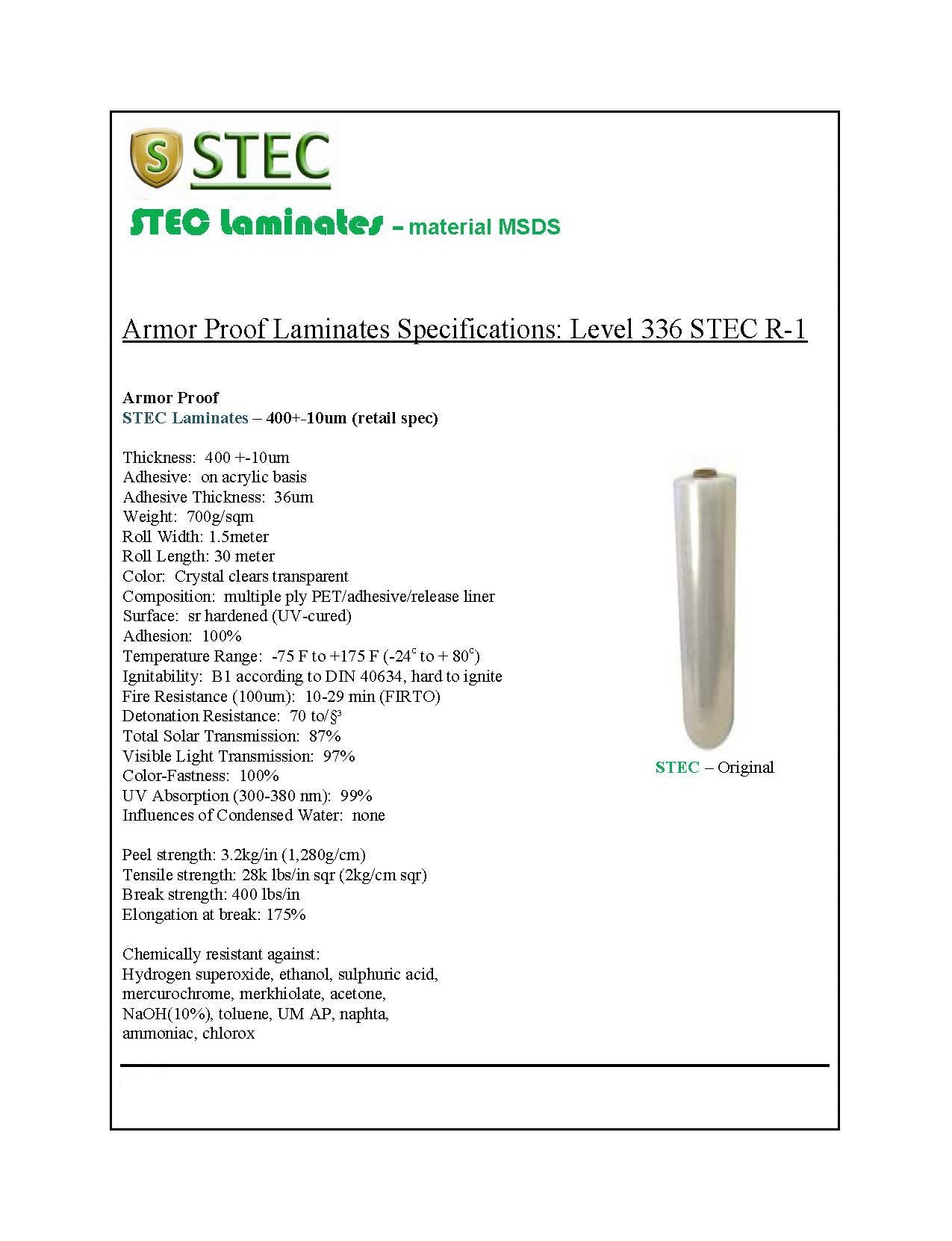

STEC Laminates – material MSDS

Armor Proof Laminates Specifications: Level 336 STEC R-1

Armor Proof

STEC Laminates – 400+-10um (retail spec)

Thickness: 400 +-10um

Adhesive: on acrylic basis

Adhesive Thickness: 36um

Weight: 700g/sqm

Roll Width: 1.5meter

Roll Length: 30 meter

Color: Crystal clears transparent

Composition: multiple ply PET/adhesive/release liner

Surface: sr hardened (UV-cured)

Adhesion: 100%

Temperature Range: -75 F to +175 F (-24c to + 80c)

Ignitability: B1 according to DIN 40634, hard to ignite

Fire Resistance (100um): 10-29 min (FIRTO)

Detonation Resistance: 70 to/§³

Total Solar Transmission: 87%

Visible Light Transmission: 97%

Color-Fastness: 100%

UV Absorption (300-380 nm): 99%

Influences of Condensed Water: none

Peel strength: 3.2kg/in (1,280g/cm)

Tensile strength: 28k lbs/in sqr (2kg/cm sqr)

Break strength: 400 lbs/in

Elongation at break: 175%

Chemically resistant against:

Hydrogen superoxide, ethanol, sulphuric acid,

mercurochrome, merkhiolate, acetone,

NaOH(10%), toluene, UM AP, naphta,

ammoniac, chlorox
