SP-MBTJ180
SecPro 180W Multi-Band Trolley Jammer - SecPro

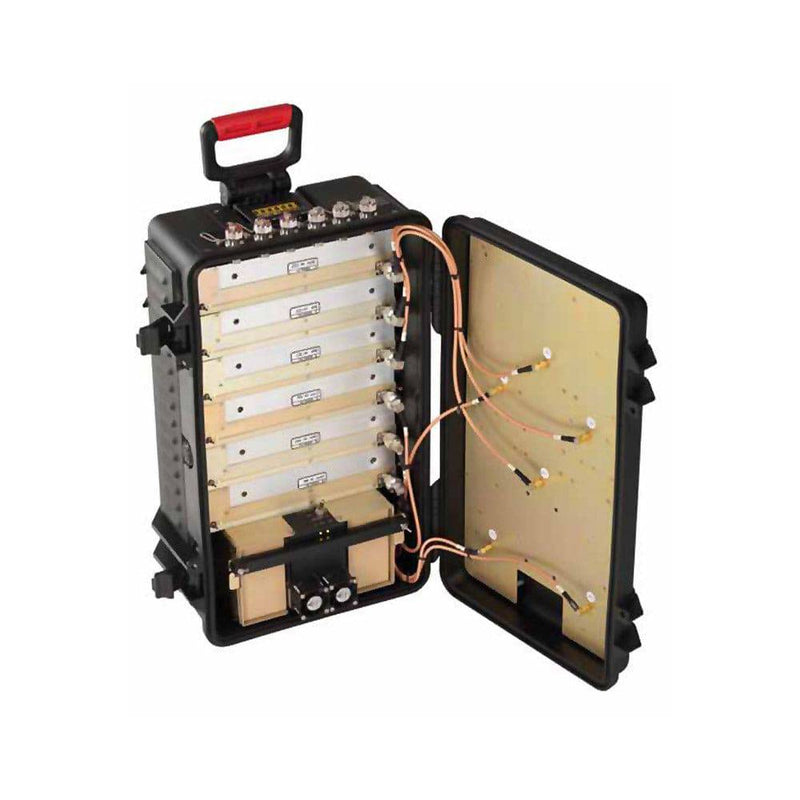

SecPro 180W Multi-Band Trolley Jammer

SKU:SP-MBTJ180
$0.00

Why Choose SecurityPro USA?

(Government Use Only)

The SecPro 180W Multi-Band Trolley Jammer is the newest iteration of our tried and tested multi-band digital jamming system. It now also covers combinations of VHF/UHF bands and of 500-6000 MHz bands, for a total of 6 bands each system. The jammer is compact and with a very high power in respect to its size and weight. Equipped with the efficient GaN Technology Power Amplifiers, High-Tech Li-Ion Rechargeable Batteries, High-gain Directive Internal Antennas and Digital Jamming Technology, the HPRC is one of the most complete transportable systems in the market.

Product Features

  • Up to 6 bands/ 30 W each + Antenna Gain 2 VHF/UHF Bands & 2 VHF/UHF bands and up to 6 GHz bands (for each system)
  • Lightweight batteries
  • Internal antennas for mobile phones
  • User-friendly interface allows control by handheld remote.
  • External antennas & AC/DC power supply for prolonged operations.

Technical Specifications



Possible Frequencies & Power Output
(Select up to 6 of the following
bands)

Standard Bands:
- VHF 20-140 MHz: 30W ± 1.5 dB
- UHF 140-500 MHz: 30W ± 1.5 dB
- LTE 800: 30W ± 1.5 dB
- GSM 900: 30W ± 1.5 dB
- DCS 1800: 30W ± 1.5 dB
- UMTS 3G 2100: 30W ± 1.5 dB
- Wi-Fi 2400: 30W ± 1.5 dB
- LTE 2600: 30W ± 1.5 dB
- Wi-Fi 5.8 GHz: 30W ± 1.5 dB


Bands depend on the country’s network
Power Supply Options

Internal batteries / or External from DC 10-32V.
AC/DC External Power Supply (Optional)
Jamming Technology

Direct Modulation Over Synthesized Signal
Temperature Range +14° F/+131° F
Humidity Up to 80%
Antennas

4-8 dB Internal Hidden Hi-Gain Patch Directive approximately 120° for cellular bands > 800 MHz
Wired LAN

Ethernet remote control

***Please note that all signal jammers are made-to-order and cannot be ordered online***
