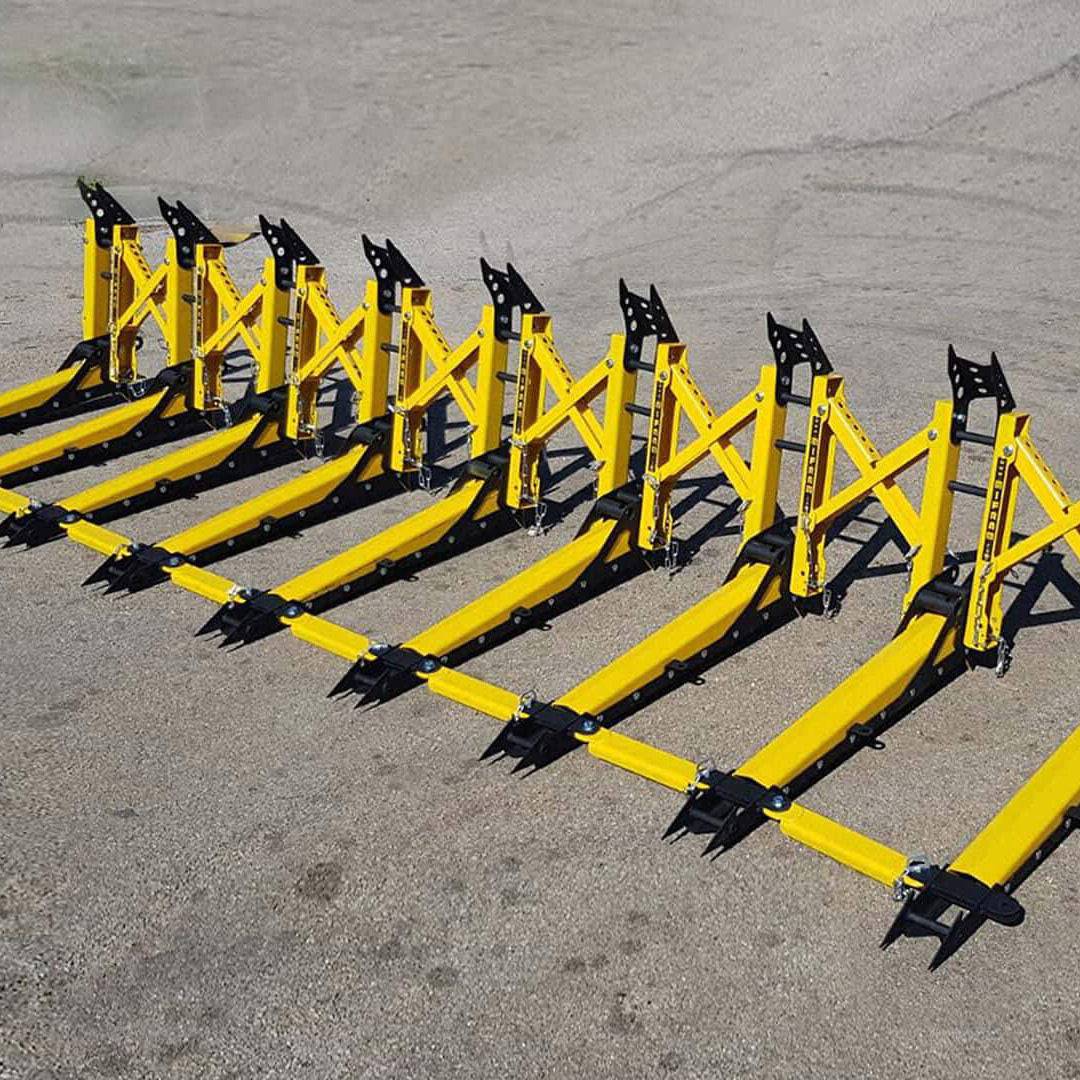

Mifram MVB 3X (Modular Vehicle Barrier)

Perimeter Security Solution

Modular Vehicle Barrier | Lightweight Vehicle Barrier | Portable Vehicle Barrier

Mifram 3X Modular Barrier for Passive Gate & Perimeter Security

• Over 20 year experience in vehicle barrier system proven across the globe
• Miframe 3x Modular vehicle barrier is lightweight and first certified and tested vehicle barrier that stops heavy trucks up to 7.5 Ton it can easily transfers momentum of vehicle to the ground.
• Mifram 3X Modular portable barrier is best perimeter security solution for security personal, municipal forces, police forces, event operators, military and special forces.

MVB Vehicle Barrier Advanced Features

1. The MVB 3X™ prevents ramming vehicles entry into restricted areas
2. Patented technology transfers momentum of vehicle to the ground
3. Modularity enables blocking wide-ranging routes and widths
4. Designed for use on sandy, rocky and rough terrain, gravel and asphalt Safety lights and signs
5. Adequate for urban areas and high level threats areas
6. Basic color: Yellow & black
7. Assembled by one agent

Modular Vehicle Barrier is Tested & Certified

TO STOP THEM ALL!

IWA 14 -1:2013 Tested & Certifed at 2,500 kg
@ 48 km/hr [ 5,513 lbs. @ 29.83 mi/h] – Penetration 10.9 m [35.76 ft.]
Tested & Certifed at 7,500 kg @ 32 km/hr [16,538 lbs.
@ 19.88 mi/h] – Penetration 10.4 m [34.12 ft.]
PAS 68:2013 Tested & Certifed at 2,500 kg
@ 48 km/hr [ 5,513 lbs. @ 29.83 mi/h] – Penetration 9.7 m [31.83 ft.]
Tested & Certifed at 7,500 kg @ 32 km/hr
[16,538 lbs. @ 19.88 mi/h] – Penetration 9 m [29.53 ft.]
ASTM – F2656-15 – Tested & Certifed at 2,500 kg
@ 48 km/hr [ 5,513 lbs. @ 29.83 mi/h] – Penetration 9.7 m [31.83 ft.]
~667 KJ Energy Absorption – Equal to 89 Concrete blocks of 1M³ (2.4 Ton)
Movement for 1 Meter Distance

MODULAR VEHICLE BARRIER MVB 3X™ BENEFITS

• Enhances safety and supports security forces
• Lightly weighted – effortlessly carried and transferred
• Transportable by varied means of transportation
• Easy and quick assembly – no tools required
• Folds compactly and stowed efficiently
• No breakdowns
• Minimal maintenance
• Cost effective
