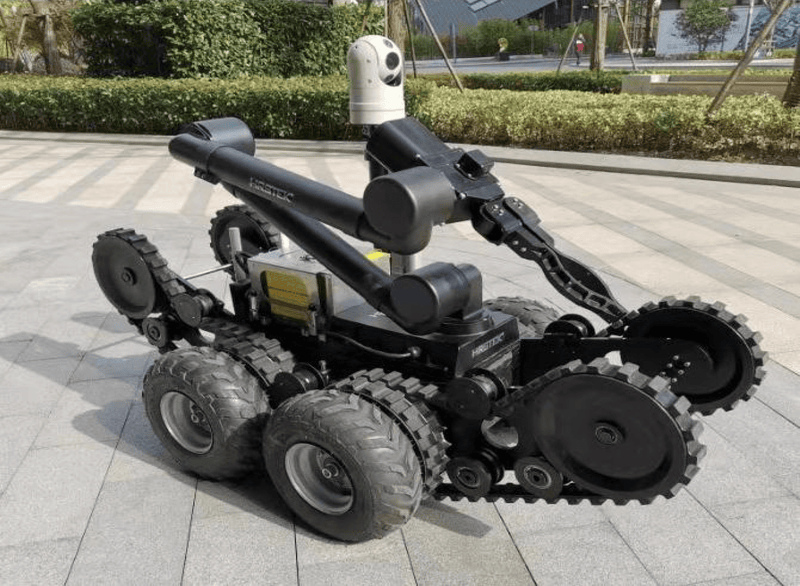

Intelligent Explosive Ordnance Disposal Robot - EOD Robot

Applications

• Explosive Ordnance Disposal
• Route Clearance
• Vehicle-Borne IED
•  SWAT
• Reconnaissance
• HazMat
• Battlefield Casualty Extraction
• Chem-Bio Detection
•  Building Clearance
•  Target Acquistion
• Weaponized Mission

Features

• High Reliability
• Fast Disposal
• Fast Response
• All-terrain and All-weather Adaptability
• Easy to Handle

Robot Dimensions

• About L1500mm×W1000mm×H350mm ( in transportation status)
• Weight: About 240kg
• Payload ≥200kg
• Maximum speed 1.0m/s
• Turning radius 0
• Shell Alloy precision machining
• Climb ability 45°(slope)、35°(stairs)
• Channel 400mm
• Obstacle crossing 350mm
• Protection IP65
• Battery Dynamic Lithium, ,48V/40AH
• Work time 2-4 hour
• Front camera Color CCD,IR NVG

Communication

• Wireless 1000m
• Wired 100m

Arm

• Modular design Can be removed from robot, dismountable
• Clutches cameras Two Color CCD,IR NVG, up and down
• Length 1.5m
• Lifting capacity Maximum 50kg, Full extension 15kg
• Clutches parts 4 types additive when required. DOF
• Shoulder rotate:360° Shoulder swing:-60~90
• Large arm swing:210° Forearm swing: 180° No extender temporarily
• Wrist rotate:360°continuous
• Clutches open:0~300mm
• Monitor Pan & Tilt
• Modular design Can be removed from robot, confusion
• Video Can be recorded realtime
• Camera
• 1/4" Sony CCD ,520TVL , low illumination level :0.02Lux,anti-explosion
• PAN:360°continuous ,120°/s
• Tilt:-45°~190°,50°/s
• extender:30cm

OCU(BOX)

• Control box anti-water box
• Dimensions about 410 mm×300 mm×190mm
• Weight About 10kg
• LCD 12 inch, high luminance LCD, wide view, distinct outdoors
• grab, reset function Multi-DOF motion simultaneously control: expand, Shortcut

• View show 4 images simultaneously,enlarge anyone
• Weapon Weapon key, safe,fire
• Information Speed,volt, posture,etc.mileage, Run time
• Battery 24V Lithium, 3-5 hours

OCU(Potable)

• Control box anti-water box
• Dimensions about 250 mm×150 mm×100mm
• Weight About 1kg
• LCD 7 inch, high luminance LCD, wide view, distinct outdoors
• grab, reset function Multi-DOF motion simultaneously control: expand, Shortcut
• View show 4 images simultaneously,enlarge anyone
• Battery 24V Lithium, 3-5 hours
