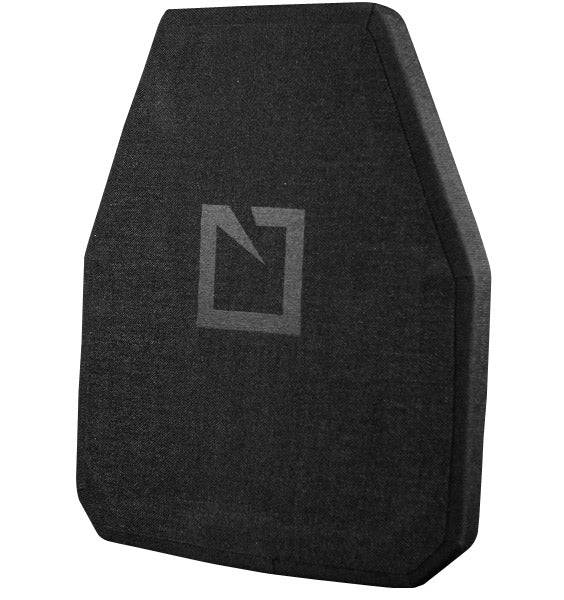

Hesco 600 Series 3600 Level III Stand Alone Plate Shooter Cut - Multi Curve (SOLD INDIVIDUALLY)
(THIS PRODUCT IS MADE TO ORDER WITH A 8-12 WEEK LEAD TIME)
Hesco 600 Series BI 3600 Shooter Cut Level III Stand Alone Multi Curve Body Armor Plates
Police & Military Plates, NIJ Level III Certified
NIJ Standard-0101.06: Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard-0101.06 plus Special Threats validated.
HESCO 600 SERIES is designed for comfort and ease of mobility. These lightweight and high performance plates are ideal for tactical teams and speed operations.
Like all of our HESCO BALLISTIC INSERTS, these plates are manufactured to the highest quality and tested beyond NIJ requirements, to a HESCO STANDARD
- Advanced Spectra® Materials
- Comfort Designed For Longer Wear
- Law Enforcement Style Shooter Cut And Military Style Sapi Cut
- Highly Durable, Waterproof, Polyurethane Coated, Cordura® Nylon Wrap
- Precision Quality Control
THICKNESS: 1.20 in (30 mm)
SHOOTER CUT - MULTI CURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 3600-SH-MC-L | 10.0 x 12.0 in (254 x 305 mm) |
2.8 lb (1.3 kg) |
| 3600-SH-MC-S | 8.0 x 10.0 in (203 x 254 mm) |
1.9 lb (0.8 kg) |
Manufacturing Tolerances:
Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to -0.25 in (+0.00 to -6 mm). All weights are ± 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10” x 12” test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern, after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate. Level IV requires one AP M2 per plate.
NIJ’s process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods, as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix.
Thread Performance Matrix
| 600 SERIES | 3600-SH-MC-L |
3600-SH-MC-S |
|
| Lead Core | 5.56 x 45 mm – MI93 Max Velocity 3150 ft/s (960 m/s) |
6 | 3 |
| 7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s) |
6 | 3 | |
| 7.62 x 51 mm – M80 * Max Velocity 2800 ft/s (853 m/s) |
6 | 3 | |
| 7.62 x 63 mm – JSP Max Velocity 2780 ft/s (847 m/s) |
3 | 1 | |
|
MILD STEEL CORE |
7.62 x 39 mm – M43 Max Velocity 2390 ft/s (728 m/s) |
6 | 3 |
General Information
Lightweight Spectra® design. Buoyant. Multi shot rated on selected threats. Water repellant polyurethane coated CORDURA® fabric finish. Made in the U.S.A
NIJ Standard–0101.06
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard– 0101.06 plus Special Rifle Threats validated.
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008.
Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
