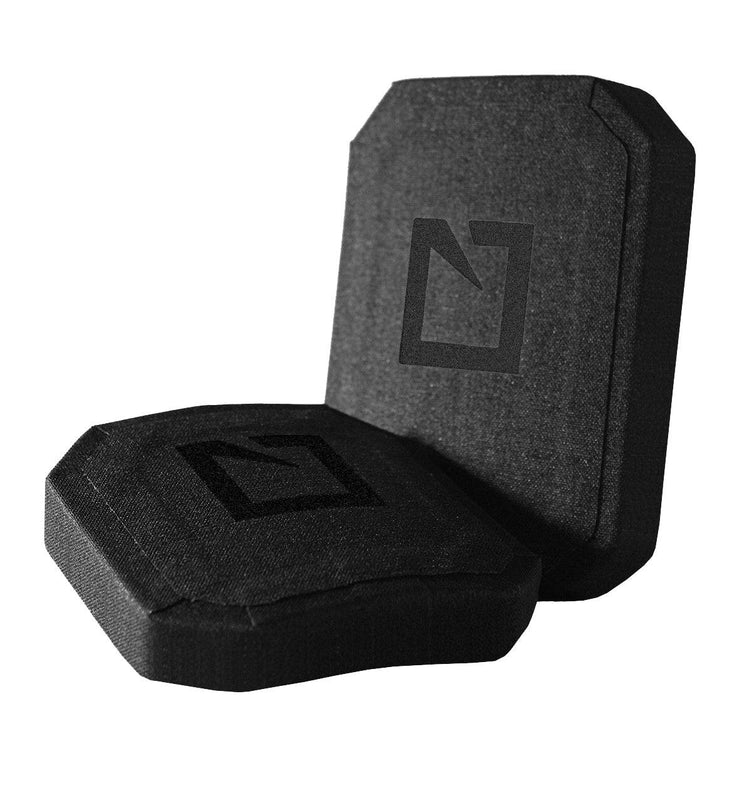

Hesco 100 Series 3100 Level III Side Plate - Single Curve (SOLD INDIVIDUALLY)
(THIS PRODUCT IS MADE TO ORDER WITH A 8-12 WEEK LEAD TIME)
Hesco 100 Series Ballistic Inserts
Body Armor Side Plates BI 3100 Level III
Hesco 100 Series trauma and side plates are expertly engineered with intention to be worn alongside Hesco torso plates.
These plates protect vulnerable areas under the arms that may become exposed when drawing, aiming or discharging your weapon.
- Cost Effective With No Compromise
- Advanced Composite Materials
- Single Curve Trauma And Side Designs
- Highly Durable, Waterproof, Polyurethane Coated, Cordura® Nylon Wrap
- Precision Quality Control
THICKNESS: 1.26 in (32 mm)
SINGLE CURVE - SIDE PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 3100-SP-SC-L | 6.0 x 8.0 in (152 x 203 mm) |
1.4 lb (0.6 kg) |
| 3100-SP-SC-S | 6.0 x 6.0 in (152 x 152 mm) |
1.0 lb (0.5 kg) |
Manufacturing Tolerances
Thickness dimensions are ± 1/8 in (± 3 mm).
Width and length dimensions are +0.00 to -0.25 in (+0.00 to -6 mm).
All weights are ± 5%.
Hesco Testing Protocol
NIJ Certification of hard armor requires submission of 10” x 12” test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern, after exposure to a stringent conditioning protocol to simulate aging and wear. Level III requires six M80 rounds per plate. Level IV requires one AP M2 per plate.
NIJ’s process provides for the inclusion of other size torso plates of identical construction to be included under the Certification without further NIJ testing.
Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods, as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix.
Thread Performance Matrix
| 100 SERIES | Lead Core | Mild Steel Core | ||
|
5.56 x 45 mm – MI93 Max Velocity 3150 ft/s (960 m/s) |
7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s) |
7.62 x 51 mm – M80 Max Velocity 2800 ft/s (853 m/s) |
7.62 x 39 mm – M43 Max Velocity 2390 ft/s (728 m/s) |
|
| 3100-SP-SC-L | 1 | 1 | 1 | 1 |
| 3100-SP-SC-S | 1 | 1 | 1 | 1 |
General Information
Tensylon design. Buoyant. Water repellant polyurethane coated CORDURA® fabric finish. Made in the U.S.A.
NIJ Standard–0101.06
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard– 0101.06 (modified) plus Special Rifle Threats validated.
Quality Standards
Hesco operates a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016-01513; BA9000: 2012; AQAP 2110
