Hand-Held Multi-Sensor Explosives And Hme’S Detector
Exploscan Multi-Sensor Explosives And Hme’S Detector
Hand Held Explosives Trace and Vapor Detector

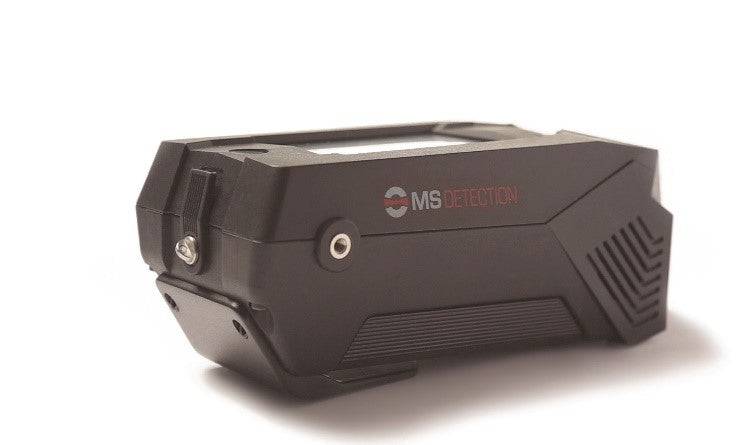

EXPLOSCAN is a hand-held and ruggedized explosives and improvised materials detector capable of trace particle and vapor detection.
Building on the exceptional capabilities and proven HF-QCM Sensor Technologies, EXPLOSCAN™ is the most rugged, hand-held explosives trace & vapor detector on the market. Lightweight, easy-to-operate, robust and highly resistant to environmental conditions, the EXPLOSCAN™ is able to detect and identify a broad range of plastic, commercial, liquid and improvised explosives, while maintaining the highest levels of sensitivity and selectivity. EXPLOSCAN™ incorporates multi-mode detection capabilities in a single unit to assist security personnel in detecting explosives and homemade materials. With exceptional threat recognition and superior throughput, EXPLOSCAN™ offers outstanding detection, performance, and reliability across the spectrum of checkpoint security applications.
Feature Highlights
- Multiple sensors (orthogonal techniques) which work together in one instrument
- Advanced software developed to interpret results of multiple sensor technologies
- Non-radioactive
- Automatic Detection, Identification and Monitor modes of operation
- Rugged and lightweight
Applications
- Aviation Security
- Customers and Border Control
- Air Cargo Screening
- Sea Ports
- Rail & Mass Transit
- Police & Law Enforcement
- Critical Infrastructure
- Military & Defense
- Hotels and Shopping Malls
HF-QCM Nanotechnology Sensors
The patented High-Frequency Quartz Crystal Microbalance sensors detect and identify a wide range of substances with great accuracy and speed. The HF-QCM sensors are successfully integrated in the EXPLOSCAN™ with a unique design of a sensor matrix coated with selective polymers.
The detection and identification of target materials is based on the piezoelectric effect where changes in mass affect the resonating frequency of the HF-QCM sensors by the adsorption of foreign molecules on their selective coatings.
The changes in frequency are accurately detected and measured.
Efficient Sample Collection
The EXPLOSCAN™ was designed with portability and flexibility in mind. It offers to analyse the sample in the pointof- screening in real-time; with a secure attachment to a breathable carry-on vest.
Trace Particles Sampling: Reusable sampling swabs are swiped across a surface and then inserted into the detector for analysis. Typical surfaces include baggage, cargo, vehicles, clothes, tickets, passports and ID cards.
Vapor Samples Collection: A battery operated Vapor Sampler draws vapors into a sampling swab, which is then inserted into the detector for analysis. Applications include car trunks, luggage, freight, containers and air cargo screening.
User-Friendly Interface
Sample analysis and results require minimal interpretation, so operators may concentrate on obtaining an efficient sample. The EXPLOSCAN™ onboard processor automatically handles all data logging, including time, date, and sample
analysis for each alarm. A complete history of saved data and alarm files can be viewed, analyzed, downloaded and printed at any time.
Operational Advantages
- The HF-QCM sensors are green and safe; and do not contain any radioactive source
- HF-QCM enables enhanced explosives and improvised materials
- Expandable threat libraries are available to accommodate unique user requirements
- Self-calibration and automatic cleaning mechanism enables a short clear down time after an alarm
- Proven and reliable operation in dusty, humid, and hightraffic areas
Ease-of-Use
- Threat detection and substance identification
- Touch screen menus on a graphical user interface can be easy to learn and operate
- Software upgrades are easy to install
- Local language options available
- Three default user levels (Operator, Supervisor and Service Manager) for greater access control
Portable
- Lightweight (850 gr. with battery) and supplied with two batteries to enable ongoing security operations
- Breathable vest enables to secure the EXPLOSCAN™ and its accessories to the operator
Cost Effective
- Helps reduce capital investments by providing a single portable and reliable solution for explosives and IED detection
- Patented sampling swabs help to reduce consumables costs
- Automatic self-diagnostics software to reduce maintenance downtime
Technical Specification
| Sensor Technologies |
High-Frequency Quartz Crystal Microbalance Sensors (HF-QCM) |
| Sample Collection |
Trace Particles and Vapors |
| Trace Particles Sample Collection |
Sample collection and surface swipe of trace particles with sampling swabs |
| Vapor Samples Collection |
Vapor sample collection with a portable and battery operated vapor sampler; |
| Explosives Detected |
Military and plastic explosives, including: TNT, C4, RDX, Semtex, PETN, Detasheet and others |
| Sensitivity |
Particle: low nanogram (ng) range |
| False Alarm |
Less than 2% |
| Warm-Up Time |
Less than 60 seconds |
| Analysis Time |
Between 7 to 15 seconds |
| Alarm Type |
Audio and visual, with substance identification |
| Display |
3.5” Color TFT touchscreen LCD display |
| Multi-Language Support |
English, French, Spanish, Portuguese, German, Polish, Russian, Chinese, Korean, Italian, Japanese, Arabic and others |
| Data Storage |
Unlimited data logging, including time, date, sample analysis, and system status |
| Data Transfer |
Micro USB Port, Optional Bluetooth and Wi-Fi |
| Battery |
12V rechargeable Lithium-Ion battery with 6 hours of feld operations |
| Weight |
850 gr. Including battery |
| Dimensions |
(L x W x H): 7.78” x 3.50” x 2.78” (19.75 x 8.89 x 7.05 cm) |
| Operating Temperature Range |
20℉ to 130℉ (-7℃ to + 54℃), less than 95% relative humidity, non-condensing |
| Hardened Specifications |
Wind, rain, shock and 1 meter (3’) drop resistance, ability to operate in wind conditions |
| Carrying Vest |
Supplied with a black, breathable vest enabling the secure attachment of the detector to vest; |
| Certifcation |
CE Mark and EMC Certifcation |
