ELS-MA2016-3G/LTE/W
Elsight ELS-MA2016 Tactical Wearable Surveillance Unit Body Cam - Elsight

Elsight ELS-MA2016 Tactical Wearable Surveillance Unit Body Cam

SKU:ELS-MA2016-3G/LTE/W
Regular price $4,199.00
Regular price $4,399.00 Sale price $4,199.00

Why Choose SecurityPro USA?

Wearable Surveillance Camera - MA2016

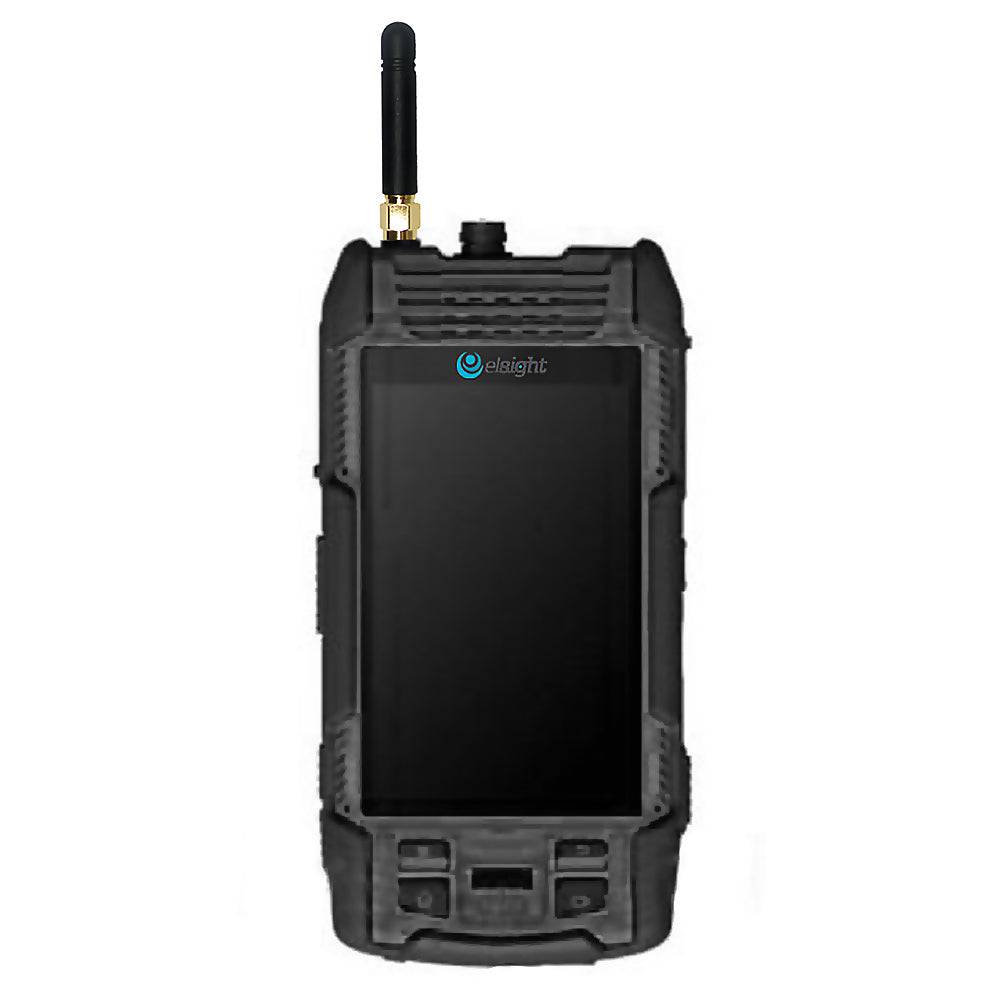

Tactical Wearable Surveillance Unit (TWS) is a body camera designed to transmit video and audio stream via 3G / 4G mobile networks or Wi-Fi networks. With the built-in GNSS module, Bluetooth module and high-definition internal camera, the TWS police camera unit provides multiple functionalities, such as device positioning, picture capturing, video and audio recording, etc. Fingerprint identification is also supported by the device and it has various extension ports to meet the actual needs. Due to these features, TWS unit is widely applied to the surveillance projects of crime scene investigations, remote depositions, loss assessments, etc.

Wearable Surveillance Camera Key Features:

  • Easy to carry the mobile terminal, meeting the needs of individual work. Three-proofing tech: water-proofing, dust-proofing and shock resistance. Lithium battery supporting at least 4 hours continuous work.
  • Supporting TCP/IP protocols; transmitting video, audio and alarm data via network. Built-in 3G/4G and Wi-Fi (2.4G/5.8G) module.
  • Supporting dual-stream: One for local high-definition storage and one for network transmission.
  • Supporting full duplex two-way audio between device and platform. Supporting group intercom between devices via network.
  • Supporting dual SIM card design: single card mode and double card mode. Supporting 32G internal storage and up to 32G external SD card.
  • Build-in and external 2 megapixels cameras for high definition videos.
  • Built-in 13 megapixels camera captures high definition pictures.
  • Built-in GPS module and pluggable BDS module precisely positioning the device and uploading location information to surveillance center.
  • Built-in Bluetooth module supporting Bluetooth headset or printer. Fingerprint identification providing high security for access control. Supporting simultaneous work of internal & external cameras. Supporting acceleration alarm in special case such as device fall off.
  • Sharing Internet connection with other devices via Tethering; working as a portable Wi-Fi hotspot.

Wearable Surveillance Camera Specifications:

Performance

Operating system Android 4.1.2
CPU Cortex-A9 Dual-Core 1.2 G Hz
RAM 1GB
ROM 32GB
Video/Audio input Video input 2-ch, built-in HD camera and HD external video input (optional)
Audio input Host MIC, Wired MIC, Bluetooth headset

Video/Audio Output

LCD WVGA (800*480), 3.5″
Audio output Wired or Bluetooth headset; Speaker
Video/Audio output Micro HDMI

Encoding/Decoding

Parameters

Video compression H.264
Encoding resolution For both built-in camera and external camera: 1080P / 720P / D1 / VGA / QVGA.
Decoding performance 1080P, 25fps

Capture

Built-in HD camera 1-ch, 13 Megapixels (4208*3120)
External camera 1-ch, 2 Megapixels (1600*1200)

Storage (optional)

Type Micro SD (TF) Card
Capability Max. 32GB

UI

Touch screen Capacitive Touch screen
Button Power on/off, Menu, Home page, Return, Record, Alarm, Capture, Audio+/Audio-, PTT
Network 3G/4G mobile networks FDD-LTE/WCDMA; Dual SIM card design.
Bluetooth BT V4.0
WIFI 802.11a/b/g/n (2.4G/5.8G)

External interface

Headset interface 1, for the wired headset
Mini USB interface 1, USB2.0
External camera interface 1, install the external camera if needed.
External antenna interface 1, install the external 3G/4G antenna when the 3G slave SIM card/4G SIM card is used.
Extension base Provide serial port, USB, RJ45
General Fingerprint identification Support
SD-KEY Support
Digital certificate Support
Electronic compass Support
GPS Built-in
Sensor G-sensor, Temperature sensor
Flash light High Brightness LED
Battery 7.4V/2000mAh
Protection level IP66, 1.5 meters of fall protection
Standby time 60h
Service time >4 hours
Working condition Temperature:-10℃~+50℃ ; humidity:10%~90%
Dimensions (H*W*D) 147.5*71*30mm
Weight 382g (with the battery)
Elsight ELS-MA2016 Tactical Wearable Surveillance Unit Body Cam - Specification Sheet Download PDF
