DroneSentry Autonomous Integrated Detection and Countermeasure
DroneSentry
Autonomous Integrated Detection and Countermeasure
DroneSentry is an autonomous fixed C-UAS system that integrates DroneShield’s suite of sensors and countermeasures into a unified responsive platform. Incorporating Radar, RfOne RF detectors, and DroneOpt cameras, DroneSentry correlates situational data that provide maximum situational awareness for automatic identification and response to UAS intrusions or threats. DroneOpt (camera) sensors can also utilise DroneOptID, DroneShield’s AI driven computer vision technology to detect, verify and track UAS (e.g. drones) in real time.
DroneSentry can be deployed in permanent or temporary installations. It can operate both as a single system deployment or with multiple systems deployed on site, for RF triangulation and identification capability - suited for large end-to-end site coverage, surveillance and C-UAS protection.
The DroneSentry system can optionally include DroneCannon RF countermeasures to automatically or manually defeat UAS once a threat has been identified, providing an end-to-end detection and response capability.
DroneShield’s C-UAS defeat capabilities do not involve protocol manipulation or “cyber” tactics, given the limitations of those methods. Our defeat technologies offer non-kinetic jamming for controlled management of threats.
BENEFITS OF DRONESENTRY:
-
Integrated Detect & Defeat Solution - Automatically detects and disables incoming UAS threats
-
Anti-Swarming Capability - Effectively disables multiple incoming drone threats within its effective range
-
Scalable - Multiple systems deployed on site provide even greater awareness and RF triangulation capabilities.
-
Modular - Compact slim design allows for effective transport, assembly and maintenance
-
Durable - Weather-resistant and rugged design protects technology in harsh environment conditions
SYSTEM COMPONENTS
PRODUCT SPECIFICATIONS
Detection:
-
RfOne MKII - Passive RF detection
-
Radar - 3D detection, multiple options available (base model RadarZero shown)
-
DroneOpt - Optical & Thermal PTZ Cameras, multiple options available (base model DroneOpt1 shown)
Defeat:
-
DroneCannon* - Non-lethal RF jamming
Support Hardware > Software
-
SmartHub - Processor
-
DroneSentry-C2 - Command-and-Control and Digital Twin system
-
DroneOptID - AI Optical Detection and Identification (Optional)
-
ComputeNode (Cloud or On-Prem)
Note:*Support Hardware vary depending on site design and network requirements.
Output Options
DroneSentry-C2
IP-based alerts (email, SMS, XML/JSON) indicating zone and any additional sensor evidence
Mobile (SMS, audible phone call)
Radio frequency audible alerts
Communications
Wired ethernet connection
Environment and Installation

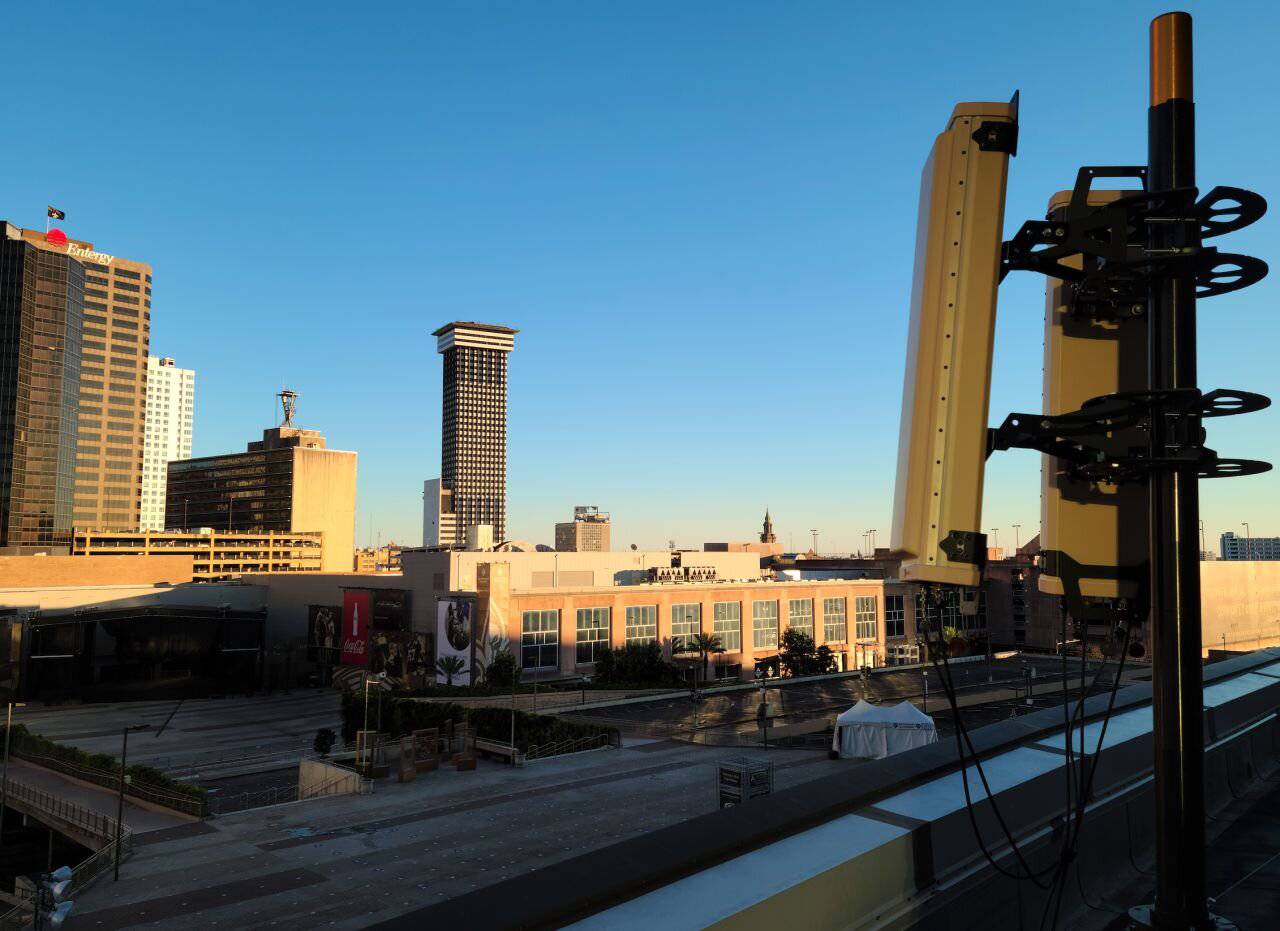

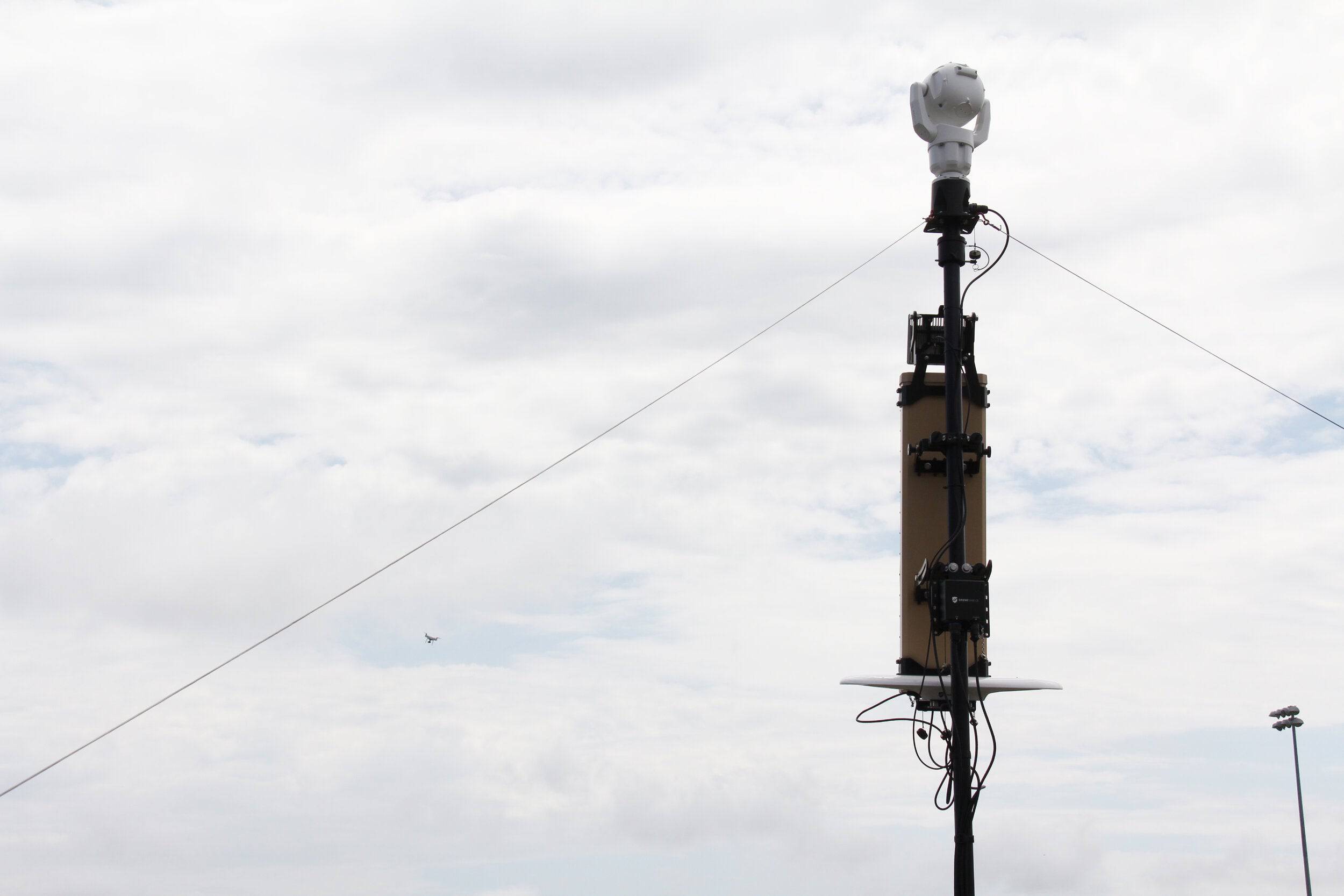

System components suitable for permanent or temporary installation
Sensor component mounting platform adaptable to suit installation environment
Elevated mounting platform required for clear lines of sight onto horizon and over area to be monitored
Sensor associated control, PSU and network electronic equipment to be installed indoors close to site or in suitable external weatherproof housing
Maintenance
Routine structural inspection, regular remote database updates, and sensor maintenance.
Certified by UK Government’s Centre for the Protection of National Infrastructure. Certification applies to the multi-sensor detection capability.
