DroneSentry
DroneSentry
Autonomous Drone Detection & Countermeasure
DroneSentry integrates Anti-Drone suite of sensors and countermeasures in a unified platform deployable in permanent or temporary installations. Incorporating all Anti-Drone technologies, DroneSentry correlates available data for users and provides maximum situational awareness and the quickest response to airborne threats. DroneSentry also includes the DroneCannon RF countermeasure, providing an end-to-end detection and response capability.
It is the ideal protection solution for critical locations and installations.
BENEFITS OF DRONESENTRY:
-
Integrated Detect and Defeat Solution: Automatically detects and disables incoming drone threats
-
Anti-Swarming Capability: Effectively disables multiple incoming drone threats within its effective range
-

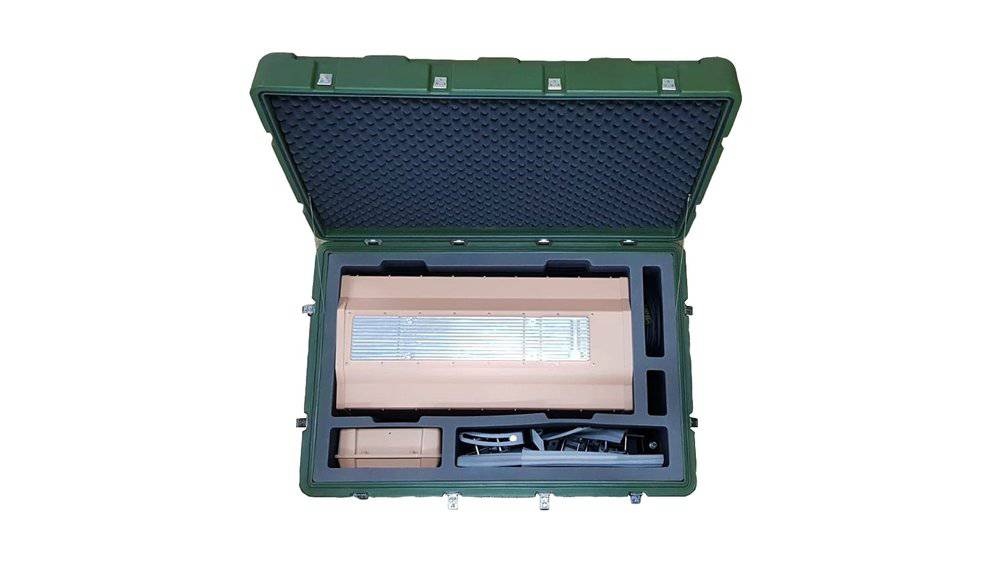

Modular: A compact design allows for effective transport and assembly
-
Durable: Weather-resistant and rugged design protects the technology in harsh environments
SPECIFICATIONS:
Performance:

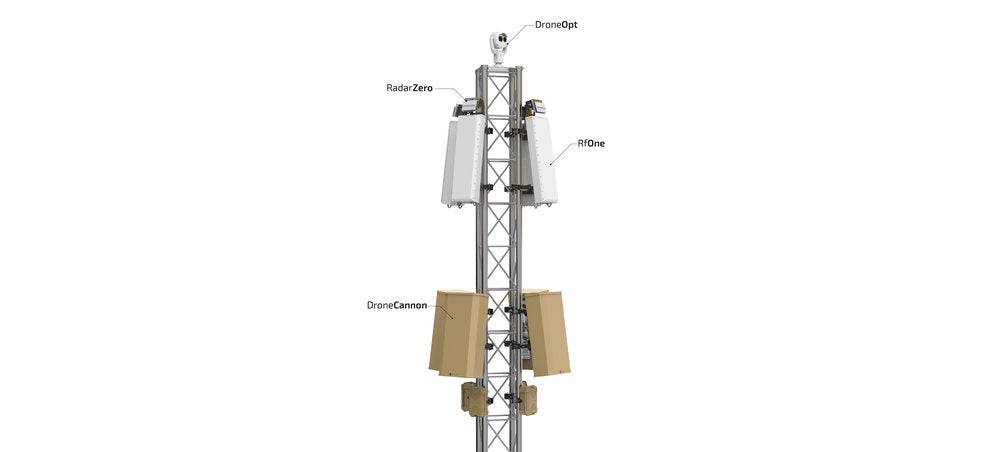

Nominal UAS detection ranges:
-
RadarZero: 1km or RadarOne: 1.5km (for DJI Phantom sized drone)
-
RFOne: 5km
Nominal UAS verification ranges:
-
DroneOpt OE: 1km
-
DroneOpt IR: 380m
Nominal UAS response ranges:
-
DroneCannon*: 1.5km
Output Options:

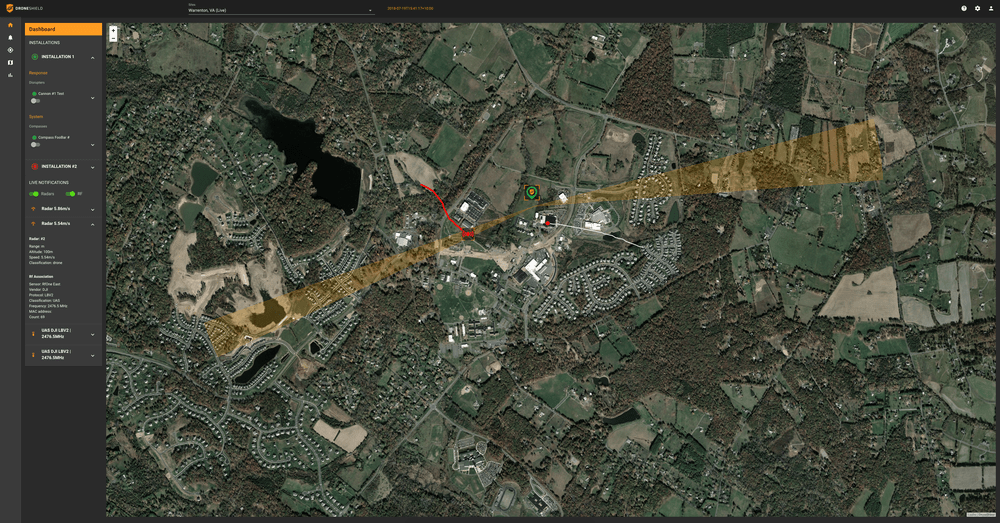

- DroneShield User Interface
- IP-based alerts (email, SMS, XML/JSON) indicating zone and any
- additional sensor evidence
- Mobile (SMS, audible phone call)
- Radio frequency audible alerts
Communications:
- Wired ethernet connection
Environment and Installation:
- System components suitable for permanent or temporary installation
- Sensor component mounting platform adaptable to suit installation environment
- Elevated mounting platform required for clear lines of sight onto horizon and over area to be monitored
- Sensor associated control, PSU and network electronic equipment to be installed indoors close to site or in suitable external weatherproof housing
Maintenance:
- Routine structural inspection, regular remote database updates, and sensor maintenance
