DroneGun MKIII
Lightweight, Compact Countermeasure

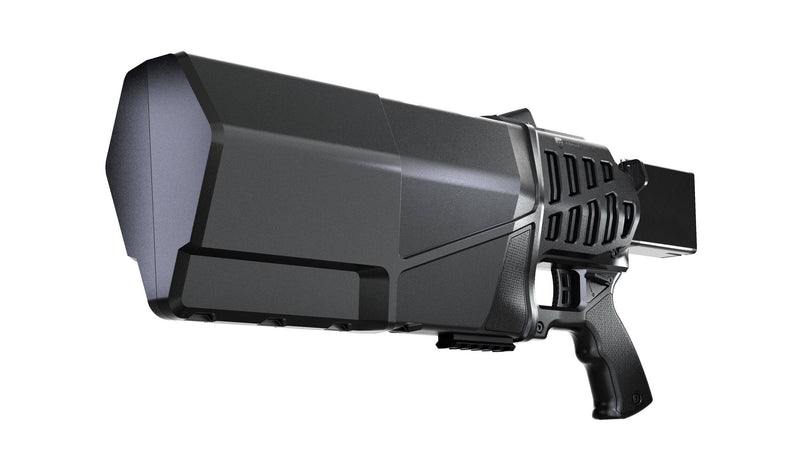

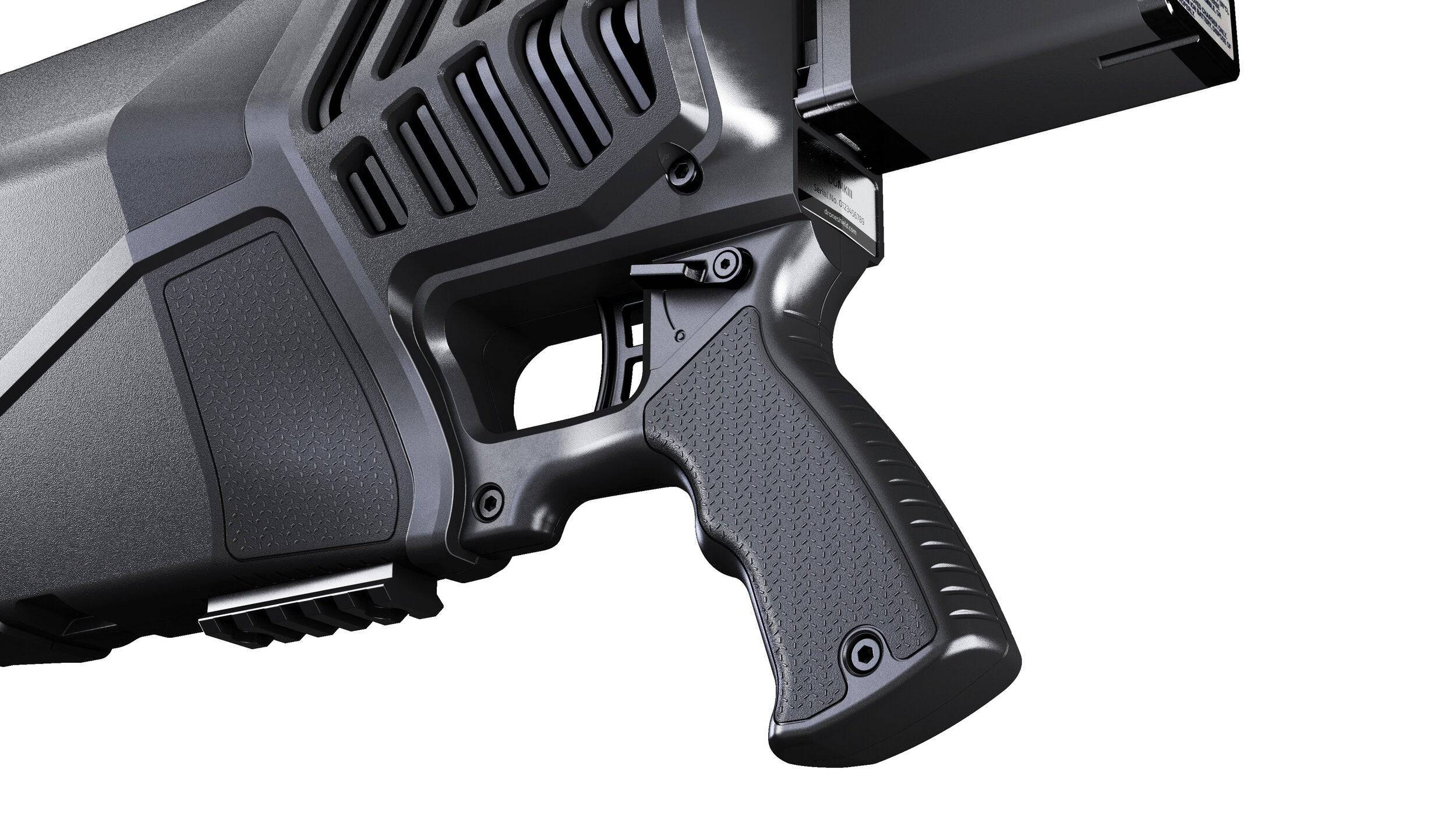

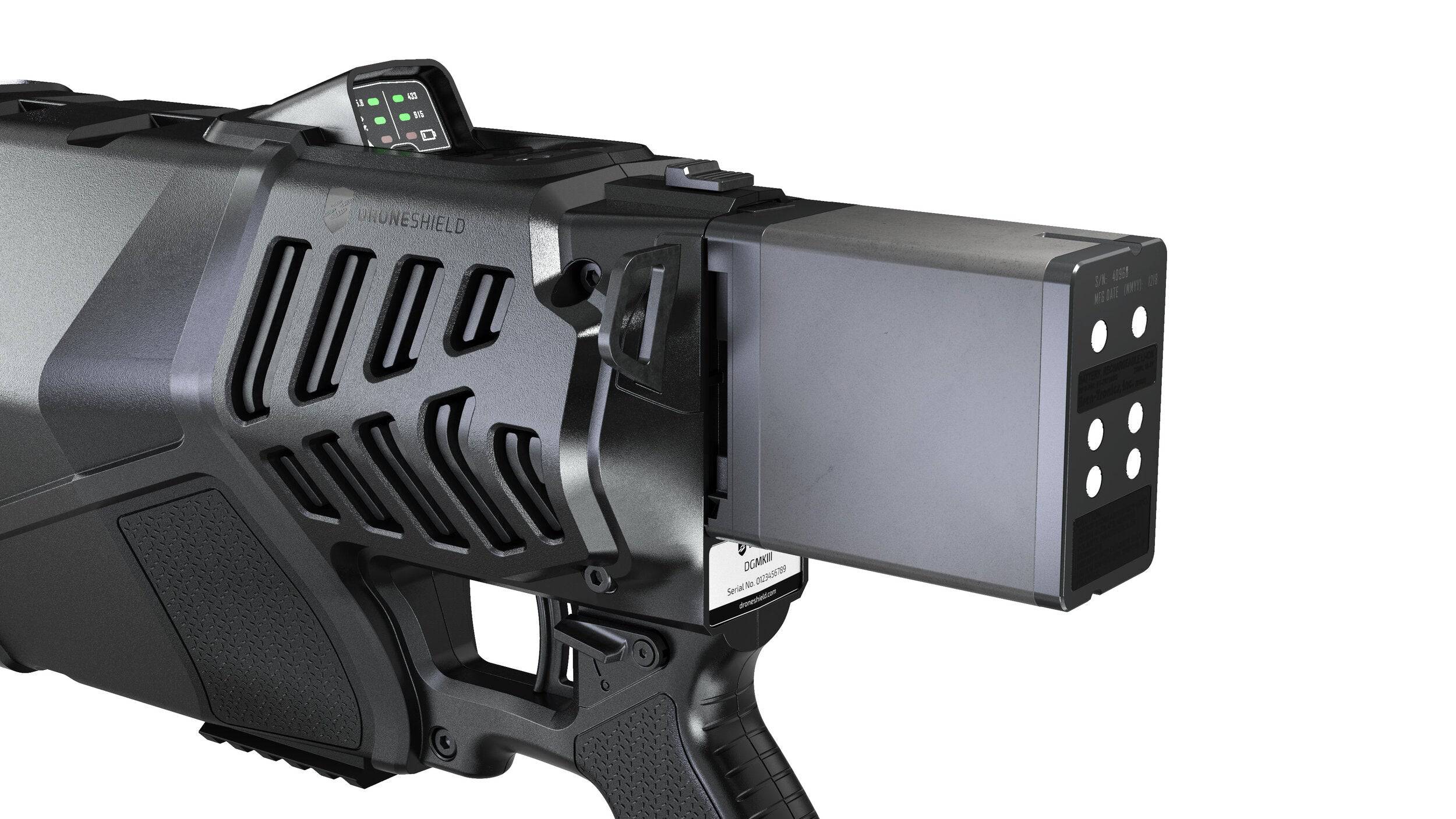

The DroneGun MKIII is a compact, lightweight UAS countermeasure solution designed for one hand operation. The product features a robust compact pistol shaped design with a control panel user interface, allowing operators to select and engage RF disruption frequency modes. The device provides a safe passive countermeasure against a wide range of UAS models.
When disruption is triggered, UAS (e.g. drone) will typically respond via a vertical controlled landing on the spot, or return back to the operator controller or starting point. RF disruption activation will also interfere with any live video streaming (FPV) back to the remote controller halting the collection of video footage and intelligence by the UAS operator.
DroneShield’s C-UAS defeat capabilities do not involve protocol manipulation or “cyber” tactics, given the limitations of those methods. Our defeat technologies offer non-kinetic jamming for controlled management of threats.
BENEFITS OF DRONEGUN MKIII:
-
Lightweight: 2.14kg total device weight including battery
-
Effective Coverage: effective in a wide range of environmental conditions
-
Fully Integrated: Battery powered hand-gun style solution, one person operation
-
Easy to Use: minimal technical training for set up or use required, highly portable design
-
Immediate Video Cease: immediately ceases video transmission back to the UAS operator
-
Enables Investigation: UAS remains intact and available for forensic investigation
-
Additional Frequency Bands: control disruption on multiple RF frequency bands simultaneously
-
GNSS Disruption: GNSS (satellite navigation) disruption capability
-
Protected: unit supplied packed in rugged carry case
PRODUCT SPECIFICATIONS:
DroneGun MKIII Specifications
Voltage: 10.8VDC
Device Weight: 2.14kg (4.72 lbs) (including battery)
User Feedback: Visual LEDs
Effective Frequencies: Wide range of ISM bands, as well as GNSS (satellite navigation)
Available Colours: Matte Black, Desert Sand
Battery Specifications
Rechargeable Lithium-Ion Battery
NATO-standard military grade battery (common use)
Quick release and reload battery operation
Start-up Time: < 3 secs
Operation Time: 1 hr+ (Aggregate operational time per charge)
Cap Charger available for continued use
Environment
Operating temperature: -20 ºC to +55 °C (-4ºF to +131ºF)
Designed to IP55
Warranty
12 months from date of shipment
Longer warranty available on request
Shipping
Ships in a Rugged Carry Case (IP67)
Dimensions: 629mm x 393mm x 209mm (24.76“ x 15.46“ x 8.24“)
Total Shipped Weight: 7.0kg (15.4 lbs) - including carry case
HS Code: 8543.70.9090
Disclaimer:
*DroneGun Tactical has not been authorized as required by the United States Federal Communications Commission (“FCC”). This device is not, and may not be, offered for sale or lease, or sold or leased, in the United States, other than to the United States government, its agencies, and its properly delegated representatives, until such authorization is obtained. The use of DroneGun Tactical in the United States by other persons or entities, including, in certain circumstances, state or local government agencies, is prohibited by federal law. Laws limiting the availability of DroneGun Tactical to certain types of users may apply in other jurisdictions, and any sales will be conducted only in compliance with the applicable laws.
