DIY Portable Wi-fi Module

DIY Portable Wi-fi Module

Looking for a unique hidden camera or just like to make your own hidden cameras? The LawMate DIY Wi-Fi module will makes DIY hidden cameras a snap.

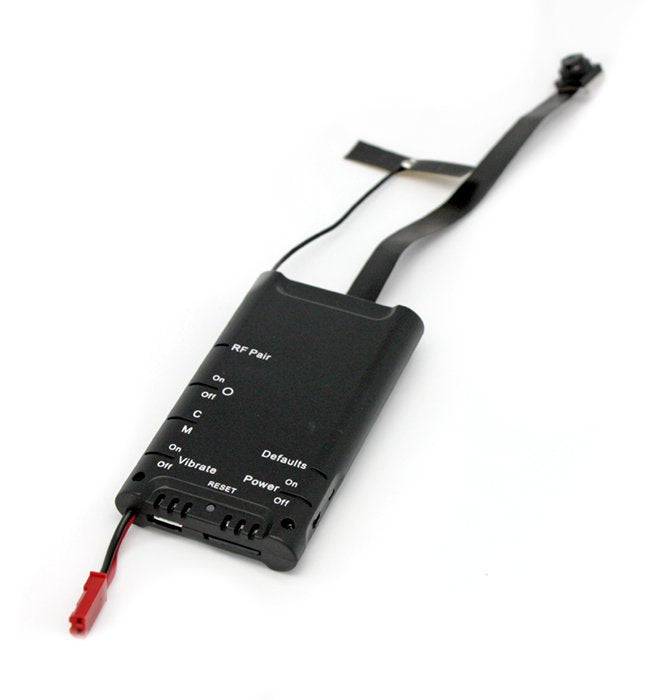

Want to make your own wi-fi hidden cameras? Need something just a little bit different than what we have? The DVR272WF lets you create a wi-fi camera in any object or appliance unique to your environment.

Features

• CMOS sensor 3MP, 1/3” progressive
• Easy use with the inculded remote control
• Three resolution to choose from 1080p / 720p / WVGA
• IP feature means you can  stream live video from anyway and view live
• Make your own hidden camera with this tiny DVR
• Install the extended hidden camera in any way you like
• View, operate, take pictures and playback on our free PV Cam Viewer app
• Long recording time up to 300 mins with 16G card
• Battery powered and easy to install or use just the way it is
• LawMate part number PV-DY10i

Take your own appliance or household object and add a Wi-fi camera! Perfect for Law Enforcement, Loss prevention or any hobbyist.

Specification

• Built-in image sensor 1/3" progressive CMOS sensor
• WIFI Built-in WiFi Module(IEEE 802.11b/g/n)
• Memory type Micro SD Card ( Support SDHC max=32GB)
• Date/Time Table YYYY/MM/DD, HH:MM:S
• Power Input DC 5V
• Power Consumption 450mA-500mA（WIFI OFF)(WIFI ON+60mA)
• Standby Consumption 8-8.5mA
• Charging Time 240 min(800mA)
• Battery Input DC 3.7V / 2200 mA Lithium battery
• Battery Life: 180min(1080P / WIFI ON) 210min(1080P / WIFI OFF) 195min(720P / WIFI ON) 225min(720P / WIFI OFF) 210min(WVGA / WIFI ON) 240min(WVGA / WIFI OFFl
• WIFI Built-in WiFi Module(IEEE 802.11b/g/n)
• Photo Capability（APP) 2M(1920*1080)
• Frame rate Up to 30 fps
• Sensor resolution 2304x1536
• Sensor sensitivity 3.3 Lux @ F 2.0
• Lens F/No. F 3.2
• Focal Length 4mm
• Angle of View 66°
• H.264, JPEG
• File Format MOV, JP
• Video recording mode Auto/Manual/Motion Detection
• Recording Capability 1920x1080, 1280x720, 848x480
