PVS-14 Night Vision Monocular (4-6 week lead time)
4-6 Week lead time

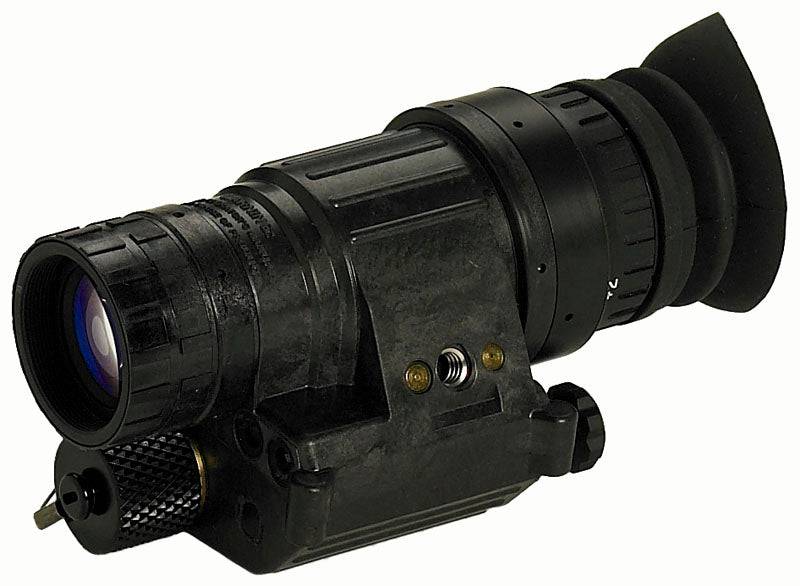

PVS-14 Night Vision Monocular
Product Description
- Variable gain control
- Single AA battery
- Hand-held, helmet-mountable or weapon-mountable
- Automatic brightness control (ABC)
- Built-in IR Illuminator
The PVS-14 is a multi-purpose night vision monocular in service with militaries and government agencies worldwide. Featuring the most advanced U.S. made Generation 3 image intensifier tubes, the PVS-14 features variable gain control and bright light automatic shut off. The PVS-14 may be hand-held, head/helmet mounted, or weapon mounted.
Optional N-Vision Optics accessories such as dual mounts, weapon mounts, and magnifier lenses make the PVS-14 extremely versatile.
Standard Kit:
PVS14P-HM includes: Unit, Adapter (J-Arm), Head Mount, Sacrificial Window, Demist Shield, Eyecup, Lens Cap, Soft Carry Case, Lens Cleaning Paper, Battery, User Manual
Specifications:
Magnification 1x
Range Focus 25 cm to infinity
Diopter Focus +2 to -6
Field of View 40∞
Operating Temperature -51∞ C to +50∞C
Storage Temperature -51∞ C to +85∞C
Weight 320 g/ 13.5 oz
Dimensions 12L x 5W x 6H (centimeters)
Battery 1 AA
Image Intensifier Generation 3 Auto-Gated White P-45 Phosphor
Resolution, min 64 lp/mm
Signal to Noise, min 25
Halo < 1.25
Dark Spots
Size Zone 1 Zone 2 Zone 3
>.009 - .012 0 0 0
>.006 - .009 0 1 2
.003 - .006 0 2 2
