Hand-Held Explosives and Narcotics Detector

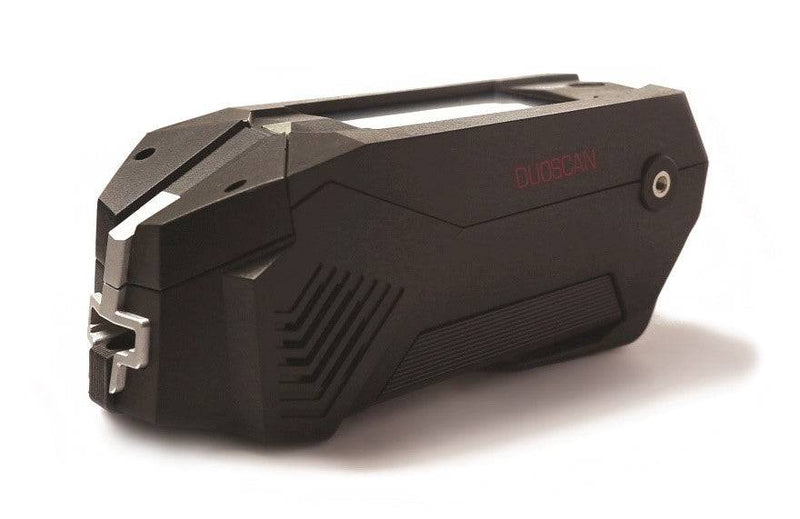

Duoscan Hand-Held Explosives and Narcotics Detection device
Reliable Detectors For Border Patrolling Teams
Building on the exceptional capabilities and proven HF-QCM Sensor Technologies, DUOSCAN™ is the most rugged, portable narcotics and contraband detector on the market. Lightweight, easy-to-operate, robust and highly resistant to environmental conditions, DUOSCAN™ is able to detect and identify a broader range of narcotics threats while maintaining the highest level of sensitivity and selectivity. DUOSCAN™ incorporates multi-mode detection capabilities in a single unit to assist security personnel in detecting narcotics and contraband. With exceptional threat recognition and superior throughput, DUOSCAN™ offers outstanding detection, performance, and reliability across the spectrum of customs, ports, and border control applications.
Feature Highlights
- Multiple sensors (orthogonal techniques) working together in one instrument
- Advanced software developed to interpret results of multiple sensor technologies
- Non-radioactive
- Automatic Detection, Identification and Monitor modes of operation
- Rugged and lightweight
- Multi-Mode capabilities
Operational Advantages
- The HF-QCM sensors are green and safe; and do not contain any radioactive source
- HF-QCM enables enhanced explosives, improvised materials, narcotics and contraband detection
- Switching between explosives to narcotics mode is immediate
- Expandable threat libraries are available to accommodate unique user requirements
- Self-calibration and automatic cleaning mechanism enables a short clear down time after an alarm
- Proven and reliable operation in dusty, humid, and high traffic areas
Ease-of-Use
- Threat detection and substance identification
- Touch screen menus on a graphical user interface can be easy to learn and operate
- Software upgrades can be easy to install Local language options available
- Three default user levels (Operator, Supervisor and Service Manager) for greater access control
Portable
- Lightweight (850 gr. with battery) and supplied with two batteries to enable ongoing security operations
- No need for UPS protection against electricity fluctuation
- Breathable vest enables to secure the DUOSCAN™ and its accessories to the operator
Cost Effective
- Helps reduce capital investments by providing a single solution for both narcotics and explosives detection
- Patented sampling swabs help to reduce consumables costs
- Automatic self-diagnostics software to reduce maintenance downtime
Applications
- Aviation Security
- Customs & Border Control
- Air Cargo Screening
- Sea Ports
- Rail & Mass Transit
- Police & Law Enforcement
- Critical Infrastructure
- Military & Defense
- Hotels & Shopping Mall
Technical Specification
| Sensor Technologies |
High-Frequency Quartz Crystal Microbalance Sensors (HF-QCM) |
| Sample Collection |
Trace Particles and Vapors |
| Trace Particles Sample Collection |
Sample collection and surface swipe of trace particles with sampling swabs |
| Vapor Samples Collection |
Vapor sample collection with a portable and battery operated vapor sampler; |
| Operating Modes |
Explosives only, Narcotics only |
| Explosives Detected |
Military and plastic explosives, including: TNT, C4, RDX, Semtex, PETN, Detasheet and others. |
| Narcotics Detected |
Heroin, Cocaine, Amphetamine, Methamphetamine, MDA, THC, LSD, Ecstasy |
| Sensitivity |
Particle: low nanogram (ng) range |
| False Alarm |
Less than 2% |
| Warm-Up Time |
Less than 60 seconds |
| Analysis Time |
Between 7 to 15 seconds |
| Alarm Type |
Audio and visual, with substance identification |
| Display |
3.5” Color TFT touchscreen LCD disply |
| Multi-Language Support |
English, French, Spanish, Italian, Portuguese, German, Polish, Russian, Chinese, Korean, Japanese, Arabic and others |
| Data Storage |
Unlimited data logging, including time, date, sample analysis, and system status |
| Data Transfer |
Micro USB Port |
| Battery |
12V rechargeable Lithium-Ion battery with 6 hours of field operations |
| Weight |
850 gr. Including battery |
| Dimensions |
(L x W x H): 7.78” x 3.50” x 2.78” (19.75 x 8.89 x 7.05 cm) |
| Operating Temperature Range |
20℉ to 130℉ (-7℃ to + 54℃), less than 95% relative humidity, non-condensing |
| Hardened Specifcations |
Wind, rain, shock and 1 meter (3’) drop resistance, ability to operate in wind conditions |
| Carrying Vest |
Supplied with a black, breathable vest enabling the secure attachment of the detector to vest; |
| Certification |
CE Mark and EMC Certification |
